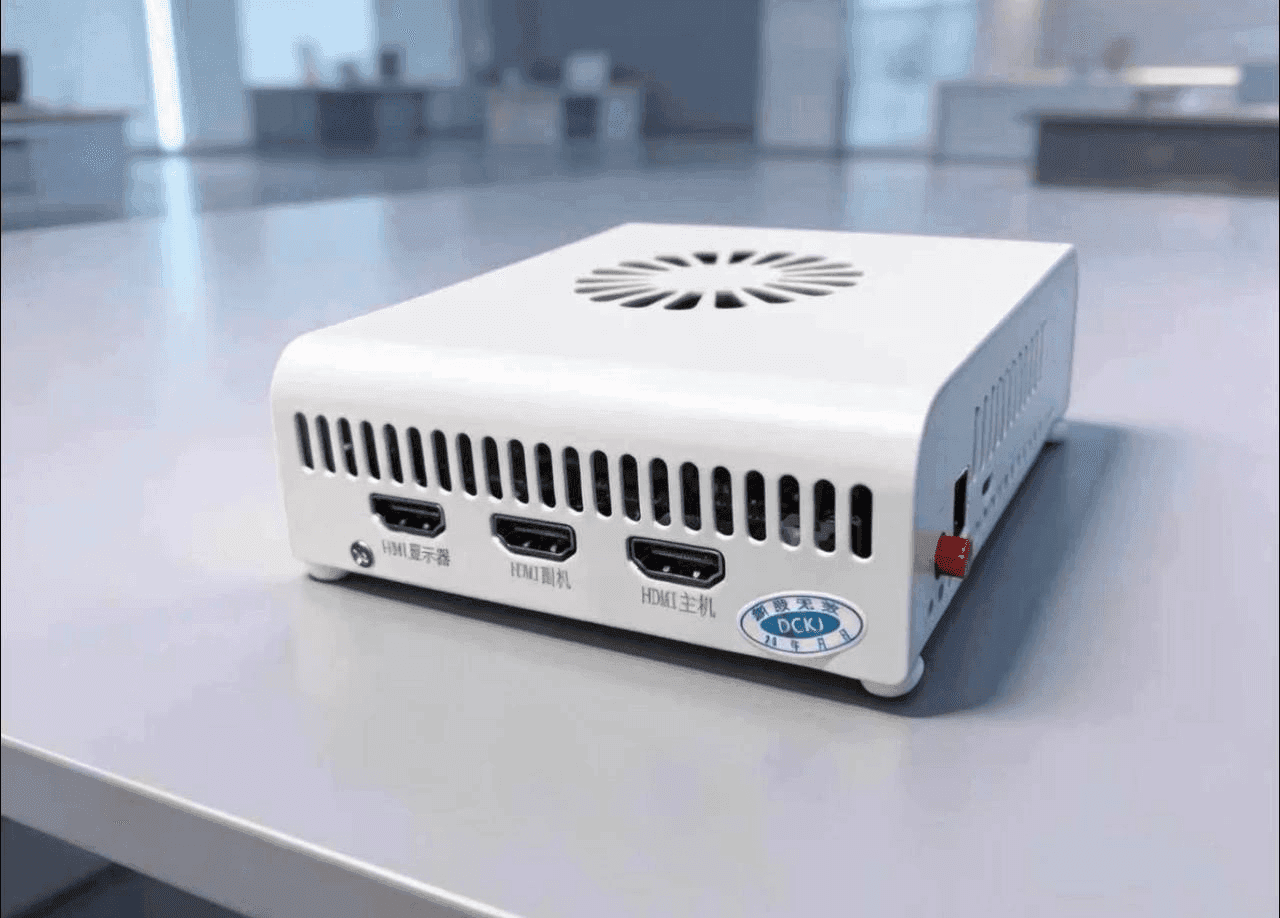

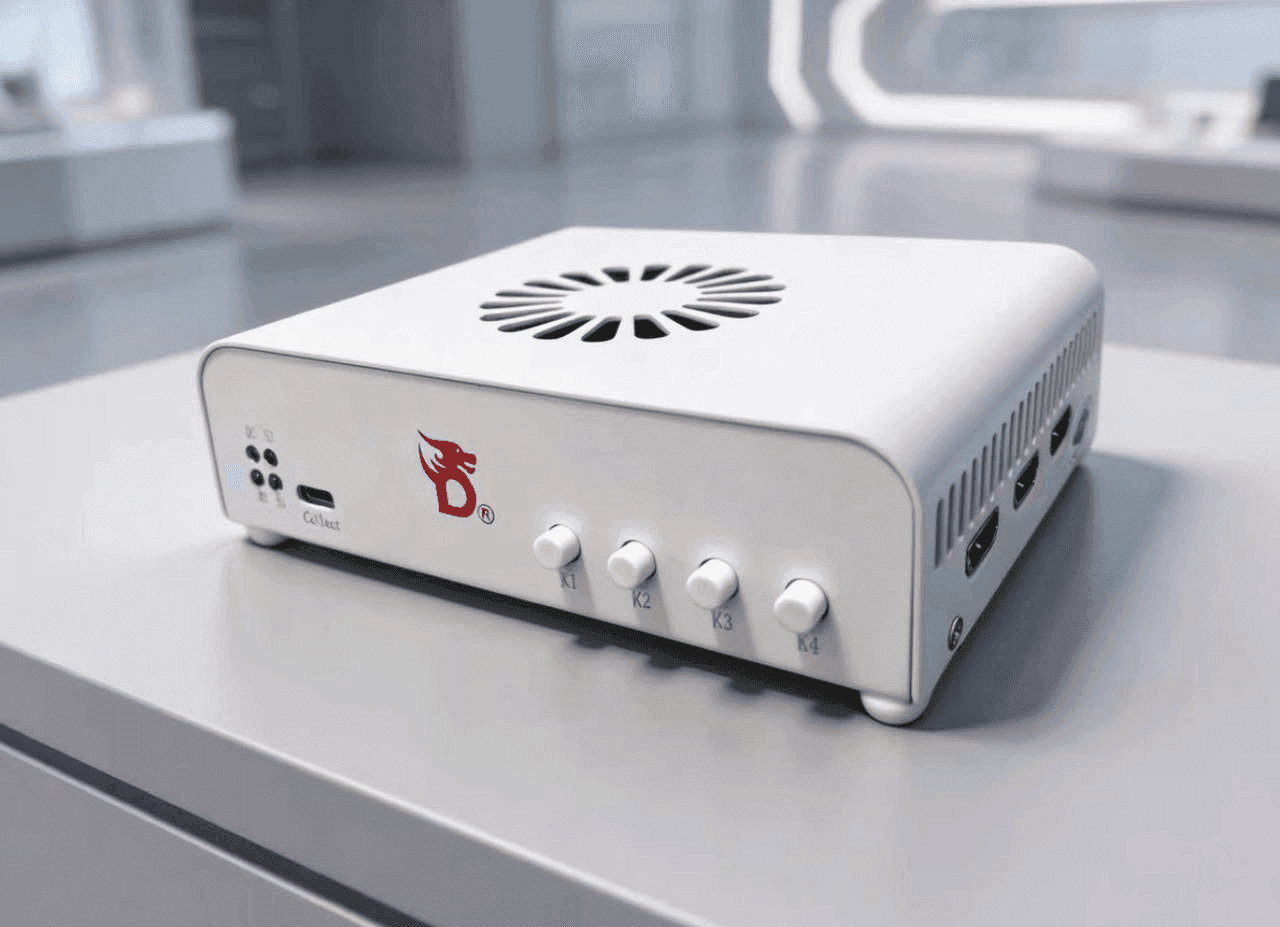

DICHEN DC505 4K Fuser
A next-generation fuser with 4K support, video capture and EDID injection.
DICHEN DC505 is an updated version of the DC500, designed for image fusion on high-refresh displays, extended signal compatibility and professional video use.
In addition to 4K image-fusion capabilities, the DC505 gained two new functions:
A built-in video capture card.
Extended EDID injection and editing.
Thanks to these improvements, the DC505 is a versatile solution for display fusion, live streaming, video capture, industrial visualization and specialized display-compatibility tasks.
Video input specs
DisplayPort input:
1920×1080 at 500 Hz
2560×1440 at 320 Hz
3840×2160 at 144 Hz
HDMI input:
1920×1080 at 550 Hz
2560×1440 at 360 Hz
3840×2160 at 160 Hz
Built-in video capture
The DC505 has built-in video capture, removing the need for a separate capture card. Capture up to 1080p 60 Hz, ultra-low latency, simultaneous video and audio capture.
EDID injection and editing
The DC505 supports advanced EDID management: loading custom EDID profiles, editing the display identifier, changing the serial number, editing the monitor name and the model/manufacturer information.
EDID modes
Mode A — adaptive EDID. Automatically adjusts signal parameters for maximum compatibility.
Mode B — the monitor's original EDID. Uses the connected display's factory parameters.
Mode C — custom EDID. Lets you load, edit and write your own EDID profiles and emulate different displays.
DICHEN DC505 is a comprehensive solution for image fusion, video capture and EDID management, built for gaming, professional AV, industrial and medical systems.
Based on 1 review
Все четенько, приехал фулл комплект, провода, блок питания, все новое четенькое, отправили и приехало все в течение 1-2 часа, теперь буду играть почти без читов в 360гц
Bought from us? Tell others how it went.
From the same section of the catalog
The DC505 updates the DC500 with two things on top of 4K image merging: a built-in capture card and extended EDID injection and editing. The first turns the fuser into a recording and streaming device as well; the second settles the cases where a monitor and a source refuse to agree on a mode.
Check your monitor HDMI 2.1 bandwidth and the second PC horsepower — the requirements match the DC500. The full chain: a DMA card, an input module, a Mini PC. Questions about a specific monitor are best asked through contacts; terms are on the payment and delivery page.
